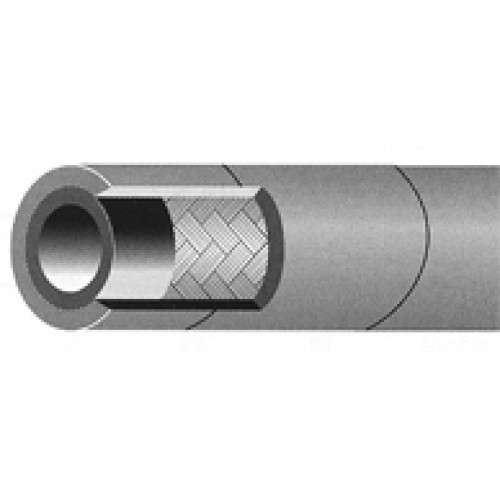

MIL-H-13531-I
Recommended for: Applications which meet or exceed SAE 100R1 Type A. Medium pressure hydraulic oil lines.
Tube: Black, oil resistant, Nitrile (NBR)
Reinforcement: White textile braid and 1-wire steel braid
Cover: Black, oil and abrasion resistant Neoprene (CR). MSHA approved.
Temperature Range: -65°F to 250°F
Mil-H-13531 |
Type l Class A |
| Part Number | Hose I.D (in) | Hose O.D. (in) | Rated W.P.(psi) | Min. Burst (psi) | Min.Bend Radius (in) | Wt. Per Ft. (lbs) | List Price |
| A012-03 | 3/16 | .50 | 3,000 | 12,000 | 3.5 | .14 | 2.05 |
| A012-04 | 1/4 | .62 | 2,750 | 11,000 | 4.0 | .21 | 2.62 |
| A012-05 | 5/16 | .69 | 2,500 | 10,000 | 4.5 | .23 | 2.88 |
| A012-06 | 3/8 | .78 | 2,250 | 9,000 | 5.0 | .28 | 3.35 |
| A012-08 | 1/2 | .90 | 2,000 | 8,000 | 7.0 | .35 | 3.84 |
| A012-10 | 5/8 | 1.03 | 1,500 | 6,000 | 8.0 | .42 | 4.38 |
| A012-12 | 3/4 | 1.18 | 1,250 | 5,000 | 9.5 | .50 | 5.34 |
| A012-16 | 1 | 1.49 | 1,000 | 4,000 | 12.0 | .73 | 7.46 |
| A012-20 | 1-1/4 | 1.80 | 625 | 2,500 | 16.5 | 1.03 | 10.41 |
| A012-24 | 1-1/2 | 2.06 | 500 | 2,000 | 20.0 | 1.18 | 12.54 |
| A012-32 | 2 | 2.63 | 375 | 1,500 | 25.0 | 1.65 | 20.26 |
