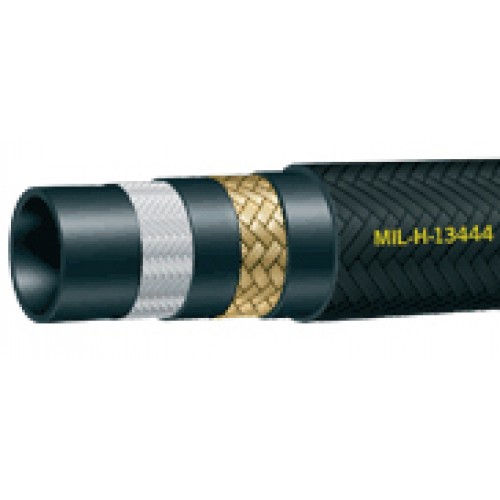

MIL-H-13444-III
Meets or exceeds the performance requirements of: MIL-DTL-13444H Type III
Application: For medium-pressure hydraulic oil and fuel lines. Used in military vehicles and other support equipment.
Inner Tube: Synthetic rubber
Reinforcement: White textile braid and 1-wire steel braid
Cover: Black impregnated textile braid
Temperature Range: -55°F to 300°F (-48.33°C to 148.89°C)
| Descriptive and Product | Hose size I.D. | Hose OD | Max Working Pressure | Min. Bend Radius | Min. Burst Pressure | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| number | In. | mm | In. | mm | psi | mpa | In. | mm | psi | mpa | lbs/foot |
| Mil-H-13444-III - 4 | 3/16 | 4 | 0.491 | 12.47 | 1500 | 10.3 | 0.75 | 19.05 | 6,000 | 41.4 | 0.28 |
| Mil-H-13444-III - 5 | 1/4 | 5 | 0.554 | 14.07 | 1500 | 10.3 | 1.00 | 25.4 | 6,000 | 41.4 | 0.28 |
| Mil-H-13444-III - 6 | 5/16 | 6 | 0.616 | 15.65 | 1000 | 6.8 | 1.25 | 31.75 | 4,000 | 27.5 | 0.39 |
| Mil-H-13444-III - 8 | 13/32 | 8 | 0.737 | 18.72 | 1000 | 6.8 | 1.75 | 44.45 | 4,000 | 27.5 | 0.47 |
| Mil-H-13444-III - 10 | 1/2 | 10 | 0.831 | 21.10 | 875 | 6.0 | 2.25 | 31.75 | 3,500 | 24.1 | 0.47 |
| Mil-H-13444-III - 12 | 5/8 | 12 | 0.956 | 24.28 | 750 | 5.1 | 2.75 | 69.85 | 3,000 | 20.7 | 0.32 |
| Mil-H-13444-III - 16 | 7/8 | 16 | 1.206 | 30.63 | 375 | 2.6 | 3.50 | 88.90 | 1,500 | 10.3 | 0.44 |
| Mil-H-13444-III - 20 | 1-1/8 | 20 | 1.487 | 37.76 | 300 | 2.0 | 4.540 | 114.3 | 1,250 | 8.6 | TBA |
