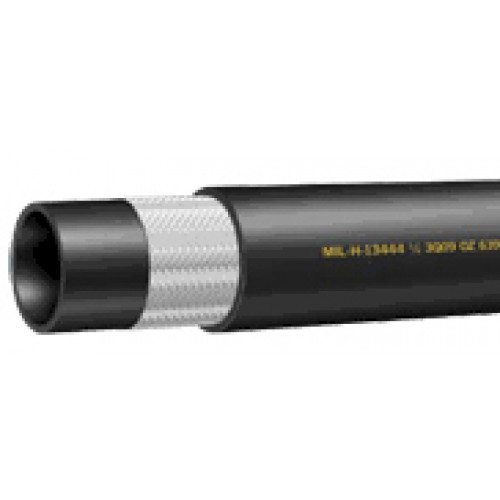

MIL-H-13444-1
Meets or exceeds the performance requirements of: MIL-DTL-13444H Type I
Application: Fuel and oil lines in military vehicles and other military applications.
Inner Tube: Synthetic rubber
Reinforcement: Single fabric braid
Cover Compound: Synthetic rubber
Temperature Range: -65°F to 250°F (-53.89°C to 121.1°C)
Qualification: QPL - 13444 Type I approved for bulk hose (3/16 - 3/8")
| Descriptive and Product | Hose size I.D. | Hose OD | Max Working Pressure | Min. Bend Radius | Min. Burst Pressure | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| number | In. | mm | In. | mm | psi | mpa | In. | mm | psi | mpa | lbs/foot |
| Mil-H-13444-I - 3 | 3/16 | 3 | 0.437 | 11.10 | 425 | 2.9 | 2.00 | 50.80 | 1,700 | 11.7 | 0.070 |
| Mil-H-13444-I - 4 | 1/4 | 4 | 0.500 | 12.70 | 300 | 2.0 | 2.25 | 57.15 | 1,250 | 8.6 | 0.090 |
| Mil-H-13444-I - 5 | 5/16 | 5 | 0.562 | 14.27 | 275 | 1.9 | 2.75 | 69.85 | 1,100 | 7.6 | 0.100 |
| Mil-H-13444-I - 6 | 3/8 | 6 | 0.625 | 15.87 | 250 | 1.7 | 3.00 | 76.20 | 1,000 | 6.9 | 0.110 |
| Mil-H-13444-I - 8 | 1/2 | 8 | 0.781 | 19.84 | 200 | 1.4 | 3.75 | 95.25 | 750 | 5.2 | 0.170 |
| Mil-H-13444-I - 10 | 5/8 | 10 | 0.968 | 25.60 | 175 | 1.2 | 4.75 | 120.65 | 700 | 4.8 | 0.220 |
| Mil-H-13444-I - 12 | 3/4 | 12 | 1.093 | 27.77 | 125 | 0.9 | 5.50 | 139.70 | 500 | 3.4 | 0.260 |
