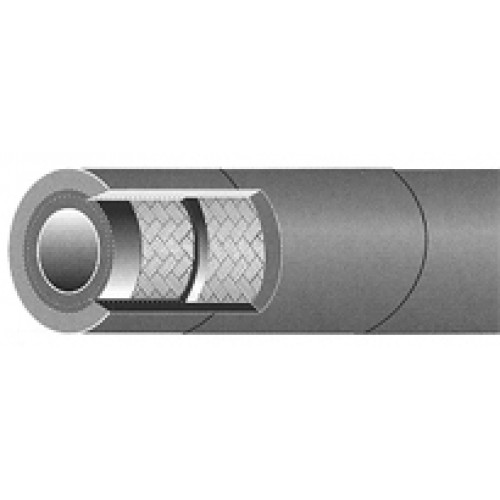

MIL-H-13531-II
Recommended for: Applications which meet or exceed SAE 100R2 Type A. Medium pressure hydraulic oil lines..
Tube: Black, oil resistant, Nitrile (NBR).
Reinforcement: Two wire braid of high tensile steel.
Cover: Black, oil and abrasion resistant Neoprene (CR). MSHA approved.
Temperature Range: -65°F to 250°F
Mil-H-13531 |
Type ll Class A |
| Part Number | Hose I.D (in) | Hose O.D. (in) | Rated W.P.(psi) | Min. Burst (psi) | Min.Bend Radius (in) | Wt. Per Ft. (lbs) | List Price |
| A013-03 | 3/16 | .61 | 5,000 | 20,000 | 3.5 | .25 | 2.82 |
| A013-04 | 1/4 | .69 | 5,000 | 20,000 | 4.0 | .31 | 3.25 |
| A013-05 | 5/16 | .74 | 4,250 | 17,000 | 4.5 | .32 | 3.41 |
| A013-06 | 3/8 | .84 | 4,000 | 16,000 | 5.0 | .39 | 4.04 |
| A013-08 | 1/2 | .95 | 3,500 | 14,000 | 7.0 | .47 | 4.58 |
| A013-10 | 5/8 | 1.09 | 2,750 | 11,000 | 8.0 | .58 | 5.54 |
| A013-12 | 3/4 | 1.26 | 2,250 | 9,000 | 9.5 | .67 | 6.43 |
| A013-16 | 1 | 1.55 | 2,000 | 8,000 | 12.0 | .99 | 8.36 |
| 1013-20 | 1-1/4 | 2.00 | 1,625 | 6,500 | 16.5 | 1.65 | 14.02 |
| 1013-24 | 1-1/2 | 2.25 | 1,250 | 5,000 | 20.0 | 1.90 | 16.25 |
| 1013-32 | 2 | 2.75 | 1,125 | 4,500 | 25.0 | 2.34 | 22.15 |
