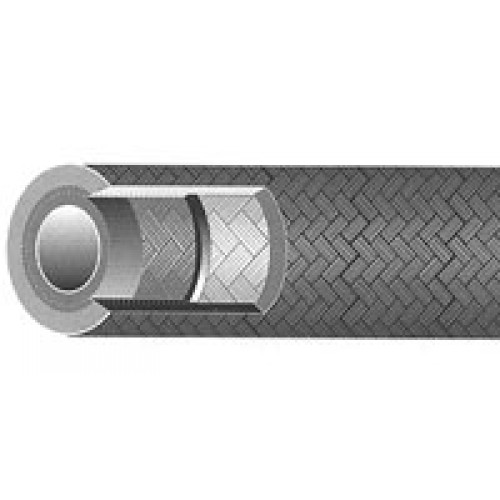

SAE 100R5 (Textile Cover)
Recommended for: Medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, oil, water, air, and truck air brake applications. Meets and exceeds the requirements of SAE 100R5 and SAE J1402 type AII for hydraulic service in all sizes. Meets and exceeds the requirements of DOT FMVSS 106 type AII for truck air brake applications in sizes 3/16" thru 5/8". Also is approved by AAMVA for air brake service.
Tube: Black, oil resistant, high temperature Nitrile (NBR).
Reinforcement: One high tensile steel wire braid over one polyester braid. Friction layers under and over wire braid improve tube and cover adhesion.
Cover: Oil resistant polyester braid impregnated with Neoprene (CR).
Temperature range: -40°F to +275°F.;+300°F intermittent.
NRP 1-Wire Braid Textile Cover
| Part Number | Hose I.D (in) | Hose O.D. (in) | Rated W.P.(psi) | Min. Burst (psi) | Min.Bend Radius (in) | Wt. Per Ft. (lbs) |
| A005-04 | 3/16 | .52 | 3,000 | 12,000 | 3.00 | .16 |
| A005-05 | 1/4 | .58 | 3,000 | 12,000 | 3.38 | .18 |
| A005-06 | 5/16 | .67 | 2,250 | 9,000 | 4.00 | .23 |
| A005-08 | 13/32 | .77 | 2,000 | 8,000 | 4.62 | .27 |
| A005-10 | 1/2 | .92 | 1,750 | 7,000 | 5.50 | .36 |
| A005-12 | 5/8 | 1.08 | 1,500 | 6,000 | 6.50 | .44 |
| 1005-16 | 7/8 | 1.23 | 800 | 3,200 | 7.38 | .45 |
| 1005-20 | 1-1/8 | 1.50 | 625 | 2,500 | 9.00 | .56 |
| 1005-24 | 1-3/8 | 1.75 | 500 | 2,000 | 10.50 | .64 |
| 1005-32 | 1-13/16 | 2.22 | 350 | 1,400 | 13.25 | .83 |
| 1005-40 | 2 3/8 | 2.88 | 350 | 1,400 | 24.00 | 1.30 |
