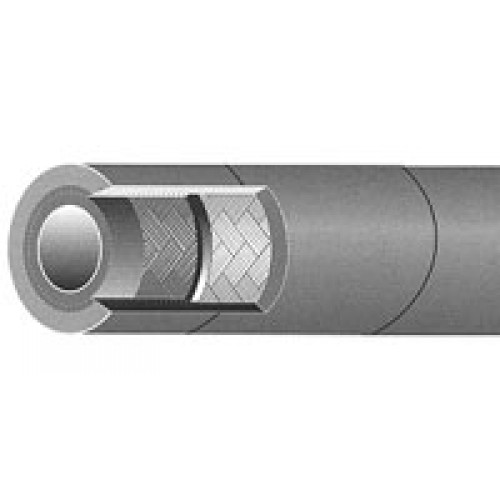

SAE 100R5 (Rubber Cover)
Recommended for: Medium pressure hydraulic oil lines. Gasoline, air, or water. Dimensions and working pressures same as SAE 100R5.
Tube: Black, oil resistant, Nitrile (NBR).
Reinforcement: One high tensile steel wire braid over one textile braid. Friction layers under and over wire braid improve tube and cover adhesion.
Cover: One textile braid covered with oil resistant Neoprene (CR). MSHA accepted.
Temperature range: -40°F to +200°F.
1-Wire Braid Rubber Cover
| Part Number | Hose I.D (in) | Hose O.D. (in) | Rated W.P.(psi) | Min. Burst (psi) | Min.Bend Radius (in) | Wt. Per Ft. (lbs) |
| A055-04 | 3/16 | .52 | 3,000 | 12,000 | 3.00 | .16 |
| A055-05 | 1/4 | .58 | 3,000 | 12,000 | 3.38 | .19 |
| A055-06 | 5/16 | .67 | 2,250 | 9,000 | 4.00 | .24 |
| A055-08 | 13/32 | .77 | 2,000 | 8,000 | 4.62 | .27 |
| A055-10 | 1/2 | .92 | 1,750 | 7,000 | 5.50 | .37 |
| A055-12 | 5/8 | 1.08 | 1,500 | 6,000 | 6.50 | .45 |
| 1055-16 | 7/8 | 1.23 | 800 | 3,200 | 7.38 | .46 |
| 1055-20 | 1-1/8 | 1.50 | 625 | 2,500 | 9.00 | .57 |
| 1055-24 | 1-3/8 | 1.75 | 500 | 2,000 | 10.50 | .65 |
| 1055-32 | 1-13/16 | 2.22 | 350 | 1,400 | 13.25 | .90 |
| 1055-40 | 2-3/8 | 2.87 | 350 | 1,400 | 24.00 | 1.36 |
