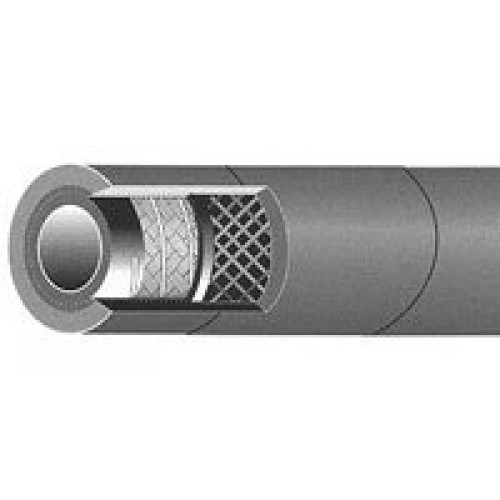

SAE 100R4 Superflex
Recommended for: Petroleum and water based hydraulic fluids, in low pressure and return line service. Minimum bend radius one half the bend radius of SAE 100R4.
Tube: Black, oil resistant, Nitrile (NBR).
Reinforcement: Two textile braids, pre-treated for tube and cover adhesion. Helix wires are located between the braids to resist collapse under vacuum or bending.
Cover: Black, oil and weather resistant Neoprene (CR). MSHA accepted.
Temperature range: -40°F to +212°F.
NRP Suction & Return
| Part Number | Hose I.D (in) | Hose O.D. (in) | Rated W.P.(psi) | Min. Burst (psi) | Min.Bend Radius (in) | Wt. Per Ft. (lbs) |
| 2014-12 | 3/4 | 1.20 | 300 | 1,200 | 2.5 | .40 |
| 2014-16 | 1 | 1.49 | 250 | 1,000 | 3.0 | .54 |
| 2014-20 | 1 1/4 | 1.78 | 200 | 800 | 4.0 | .66 |
| 2014-24 | 1 1/2 | 2.06 | 150 | 600 | 5.0 | .87 |
| 2014-32 | 2 | 2.54 | 100 | 400 | 6.0 | 1.36 |
| 2014-40 | 2 1/2 | 3.02 | 62 | 250 | 7.0 | 1.72 |
