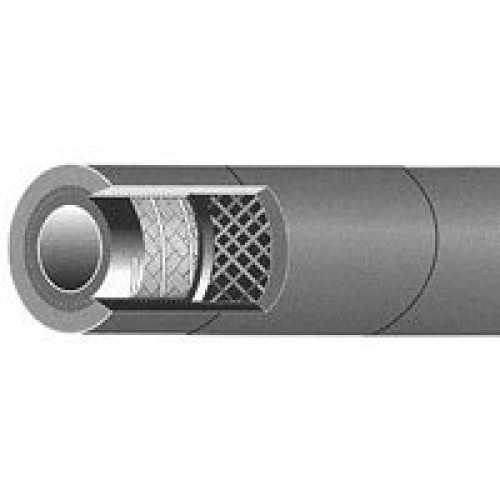

SAE 100R4
Recommended for: Petroleum and water based hydraulic fluids, in low pressure and vacuum service. Especially recommended for return lines in hydraulic control systems. Meets of exceeds requirements of SAE 100R4
Tube: Black, oil resistant, Nitrile (NBR).
Reinforcement: Two textile braids, pre-treated for tube and cover adhesion. Helix wires are located between the braids to resist collapse under vacuum or bending.
Cover: Black, oil and weather resistant Neoprene (CR). MSHA accepted.
Temperature range: -40°F to +200°F
NRP Suction & Return
| Part Number | Hose I.D (in) | Hose O.D. (in) | Rated W.P.(psi) | Min. Burst (psi) | Min.Bend Radius (in) | Wt. Per Ft. (lbs) |
| 2004-12 | 3/4 | 1.24 | 300 | 1,200 | 5.0 | .42 |
| 2004-16 | 1 | 1.53 | 250 | 1,000 | 6.0 | .57 |
| 2004-20 | 1-1/4 | 1.78 | 200 | 800 | 8.0 | .67 |
| 2004-24 | 1-1/2 | 2.07 | 150 | 600 | 10.0 | .84 |
| 2004-32 | 2 | 2.54 | 100 | 400 | 12.0 | 1.03 |
| 2004-40 | 2-1/2 | 3.12 | 62 | 250 | 14.0 | 1.70 |
| 2004-48 | 3 | 3.62 | 56 | 225 | 18.0 | 1.98 |
| 2004-56 | 3-1/2 | 4.14 | 45 | 180 | 21.0 | 2.34 |
| 2004-64 | 4 | 4.70 | 35 | 140 | 24.0 | 3.03 |
