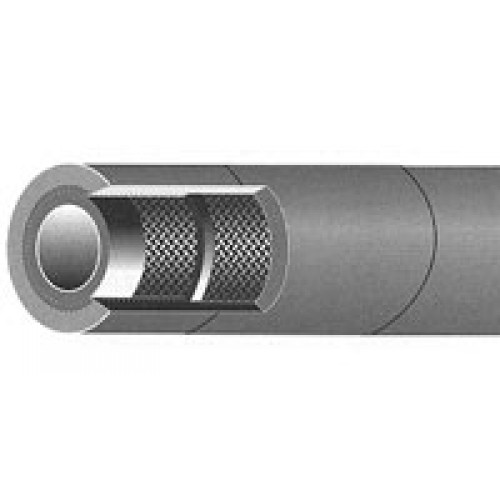

SAE 100R3
Recommended for: Petroleum and water based hydraulic fluids, anti-freeze, and water. Meets or exceeds requirements of SAE 100R3
Tube: Black, oil resistant, Nitrile (NBR).
Reinforcement: Two textile braids, pre-treated for tube and cover adhesion.
Cover: Black, oil and abrasion resistant Neoprene (CR). MSHA accepted.
Temperature range: -40°F to +200°F
NRP 2-Textile Braid
| Part Number | Hose I.D (in) | Hose O.D. (in) | Rated W.P.(psi) | Min. Burst (psi) | Min.Bend Radius (in) | Wt. Per Ft. (lbs) |
| B003-03 | 3/16 | .50 | 1,500 | 6,000 | 3 | .10 |
| B003-04 | 1/4 | .56 | 1,250 | 5,000 | 3 | .12 |
| B003-06 | 3/8 | .75 | 1,125 | 4,500 | 4 | .18 |
| B003-08 | 1/2 | .94 | 1,000 | 4,000 | 5 | .29 |
| B003-12 | 3/4 | 1.25 | 750 | 3,000 | 6 | .45 |
| B003-16 | 1 | 1.50 | 565 | 2,250 | 8 | .57 |
| 2003-20 | 1-1/4 | 1.75 | 375 | 1,500 | 10 | .65 |
