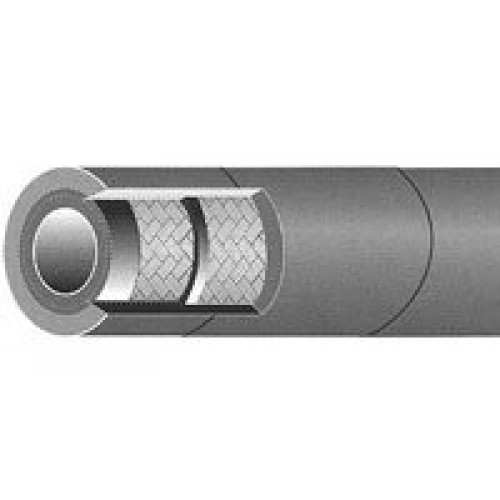

SAE 100R2 AT WearGuard
Recommended for: High pressure hydraulic oil lines. Meets or exceeds requirements of SAE 100R2 Type AT.
Tube: Black, oil resistant, Neoprene (CR). MSHA accepted.
Reinforcement: Two braids of high tensile steel wire
Cover: Black, oil and abrasion resistant, Neoprene (CR). MSHA accepted.
Temperature range: -40°F to +250°F
NRP 2-Wire Braid Non-Skive
| Part Number | Hose I.D (in) | Hose O.D. (in) | Rated W.P.(psi) | Min. Burst (psi) | Min.Bend Radius (in) | Wt. Per Ft. (lbs) |
| A102-03 | 3/16 | .53 | 6,000 | 24,000 | 3.5 | .20 |
| A102-04 | 1/4 | .59 | 5,800 | 23,200 | 4.0 | .25 |
| A102-05 | 5/16 | .65 | 5,050 | 20,200 | 4.5 | .27 |
| A102-06 | 3/8 | .75 | 4,800 | 19,200 | 5.0 | .32 |
| A102-08 | 1/2 | .86 | 4,000 | 16,000 | 7.0 | .40 |
| A102-10 | 5/8 | 1.00 | 3,625 | 14,500 | 8.0 | .49 |
| A102-12 | 3/4 | 1.16 | 3,100 | 12,400 | 9.5 | .57 |
| A102-16 | 1 | 1.49 | 2,400 | 9,600 | 12.0 | .90 |
| 1102-20 | 1-1/4 | 1.90 | 1,825 | 7,300 | 16.5 | 1.47 |
| 1102-24 | 1-1/2 | 2.15 | 1,300 | 5,200 | 25.0 | 1.70 |
| 1102-32 | 2 | 2.66 | 1,160 | 4,640 | 25.0 | 2.34 |
| A102-04UP | 1/4 | .59 | 5,800 | 24,000 | 4.0 | .25 |
| A102-06UP | 3/8 | .75 | 4,800 | 19,200 | 5.0 | .32 |
| A102-08UP | 1/2 | .86 | 4,000 | 16,000 | 7.0 | .40 |
| A102-12UP | 3/4 | 1.16 | 3,100 | 12,400 | 9.5 | .57 |
| A102-16UP | 1 | 1.49 | 2,000 | 9,600 | 12.0 | .90 |
| A102-06TP | 3/8 | .75 | 4,800 | 19,200 | 5.0 | .32 |
| A102-08TP | 1/2 | .86 | 4,000 | 16,000 | 7.0 | .40 |
