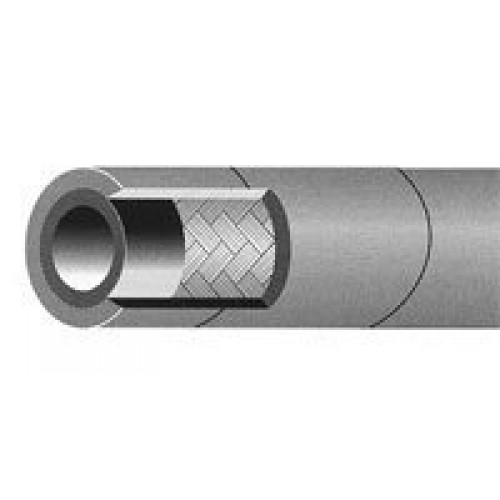

SAE 100R1 AT WearGuard
Recommended for: Medium pressure hydraulic oil lines. Meets or exceeds requirements of SAE 100R1
Tube: Black, oil resistant, Nitrile (NBR).
Reinforcement: One braid of higher tensile steel wire
Cover: Black, oil and abrasion resistant Neoprene (CR). MSHA accepted.
Temperature range: -40°F to +250°F
NRP 1-Wire Braid Non-Skive
| Part Number | Hose I.D (in) | Hose O.D. (in) | Rated W.P.(psi) | Min. Burst (psi) | Min.Bend Radius (in) | Wt. Per Ft. (lbs) |
| A101-03 | 3/16 | .47 | 3,000 | 12,000 | 3.5 | .13 |
| A101-04 | 1/4 | .53 | 2,750 | 11,000 | 4.0 | .16 |
| A101-05 | 5/16 | .59 | 2,500 | 10,000 | 4.5 | .17 |
| A101-06 | 3/8 | .68 | 2,250 | 9,000 | 5.0 | .22 |
| A101-08 | 1/2 | .80 | 2,000 | 8,000 | 7.0 | .28 |
| A101-10 | 5/8 | .93 | 1,500 | 6,000 | 8.0 | .34 |
| A101-12 | 3/4 | 1.09 | 1,250 | 5,000 | 9.5 | .41 |
| A101-16 | 1 | 1.41 | 1,000 | 4,000 | 12.0 | .63 |
| 1101-20 | 1-1/4 | 1.72 | 625 | 2,500 | 16.5 | .91 |
| 1101-24 | 1-1/2 | 2.00 | 500 | 2,000 | 20.0 | 1.07 |
| 1101-32 | 2 | 2.54 | 375 | 1,500 | 25.0 | 1.44 |
| A101-04UP | 1/4 | .62 | 2,750 | 11,000 | 4.0 | .21 |
| A101-06UP | 3/8 | .78 | 2,250 | 9,000 | 5.0 | .28 |
| A101-08UP | 1/2 | .90 | 2,000 | 8,000 | 7.0 | .35 |
| A101-12UP | 3/4 | 1.18 | 1,250 | 5,000 | 9.5 | .50 |
| A101-16UP | 1 | 1.49 | 1,000 | 4,000 | 12.0 | .73 |
