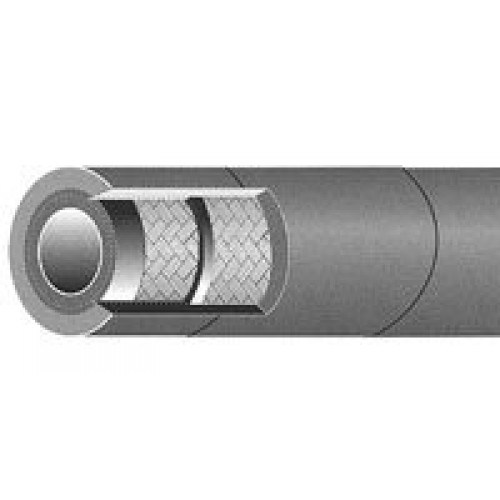

SAE 100R16 WearGuard

Recommended for: Medium pressure hydraulic applications. Meets or exceeds SAE 100R16 performance specifications.

Tube: Black, oil resistant, Nitrile (NBR).

Reinforcement: Two wire braid of high tensile steel

Cover: Black, oil abrasion resistant Neoprene (CR). MSHA approved.

Temperature range: -40°F to 250°F

NRP 2-Wire Braid Non-Skive

Part Number Hose I.D (in) Hose O.D. (in) Rated W.P.(psi) Min. Burst (psi) Min.Bend Radius (in) Wt. Per Ft. (lbs)
A150-04 1/4 .57 5,800 23,200 2.0 .24
A150-06 3/8 .72 4,800 19,200 2.5 .30
A150-08 1/2 .84 4,000 16,000 3.5 .39
A150-10 5/8 .98 3,625 14,500 4.0 .47
A150-12 3/4 1.10 3,100 12,400 4.5 .55
A150-16 1 1.41 2,400 9,600 6.0 .82
A150-04UP 1/4 .57 5,800 23,200 2.0 .24
A150-06UP 3/8 .72 4,800 19,200 2.5 .30
A150-08UP 1/2 .84 4,000 16,000 3.5 .39
