SAE 100R15 Ultra High Pressure
Recommended for: Ultra-high pressure hydraulic oil lines for heavy duty service applications with crude oils, fuel oils, lubricating oils, and gasoline. Exceeds SAE 100R15.
Tube: Black, oil resistant, Neoprene (CR).

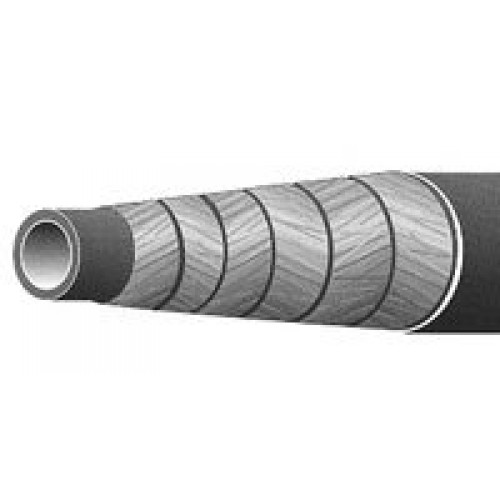

Reinforcement: 6 plies of spiral-wound high-tensile steel wire with elastomer cushion between wires to eliminate wire-to-wire contact.
Cover: Black synthetic rubber resistant to oil, weather, and abrasion. MSHA accepted.
Temperature range:- 40°F to +250°F
Jones "9-Lives" — 6-Spiral Black Cover
| Part Number | Hose I.D (in) | Hose O.D. (In.) | Hose O.D. (mm) |
Rated W.P. (psi) |
Min. Burst (psi) | Min.Bend Radius (in) | Wt. Per Ft. (lbs) | ||
| Min | Max | Min | Max | ||||||
| 1211-06 | 3/8 | .742 | .805 | 18.85 | 20.45 | 6,000 | 24,000 | 6.0 | .64 |
| 1211-08 | 1/2 | .886 | .949 | 22.50 | 24.10 | 6,000 | 24,000 | 8.0 | .78 |
| 1211-12 | 3/4 | 1.161 | 1.240 | 29.50 | 31.50 | 6,000 | 24,000 | 10.5 | 1.55 |
| 1211-16 | 1 | 1.476 | 1.571 | 37.50 | 39.90 | 6,000 | 24,000 | 13.0 | 1.94 |
| 1211-20 | 1-1/4 | 1.909 | 2.028 | 48.50 | 51.50 | 6,000 | 24,000 | 17.5 | 2.68 |
| 1211-24 | 1-1/2 | 2.228 | 2.346 | 56.60 | 59.60 | 6,000 | 24,000 | 21.0 | 3.61 |
| 1211-32 | 2 | 2.734 | 2.860 | 69.45 | 72.65 | 6,000 | 24,000 | 26.0 | |
