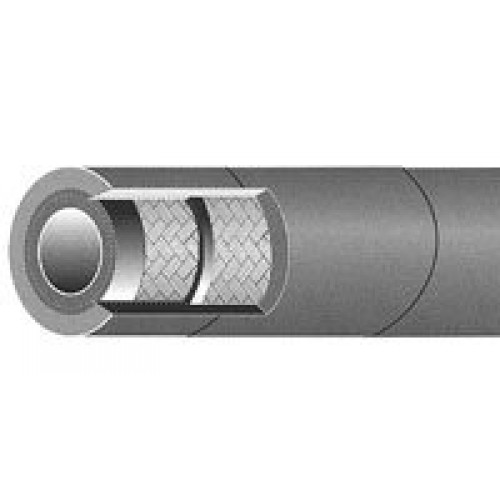

SAE 100R16 WearGuard Plus
Recommended for: Medium pressure hydraulic applications. Meets or exceeds SAE 100R16 performance specifications.
Tube: Black, oil resistant, Nitrile (NBR).
Reinforcement: Two wire braid of high tensile steel
Cover: Black, oil abrasion resistant Neoprene (CR). MSHA approved.
Temperature range: -40°F to 250°F
NRP 2-Wire Braid Non-Skive
| Part Number | Hose I.D (in) | Hose O.D. (in) | Rated W.P.(psi) | Min. Burst (psi) | Min.Bend Radius (in) | Wt. Per Ft. (lbs) |
| A250-04 | 1/4 | .57 | 5,800 | 23,200 | 2.0 | .24 |
| A250-06 | 3/8 | .72 | 4,800 | 19,200 | 2.5 | .30 |
| A250-08 | 1/2 | .84 | 4,000 | 16,000 | 3.5 | .39 |
| A250-10 | 5/8 | .98 | 3,625 | 14,500 | 4.0 | .47 |
| A250-12 | 3/4 | 1.10 | 3,100 | 12,400 | 4.5 | .55 |
| A250-16 | 1 | 1.41 | 2,400 | 9,600 | 6.0 | .82 |
| A250-04UP | 1/4 | .57 | 5,800 | 23,200 | 2.0 | .24 |
| A250-06UP | 3/8 | .72 | 4,800 | 19,200 | 2.5 | .30 |
| A250-08UP | 1/2 | .84 | 4,000 | 16,000 | 3.5 | .39 |
