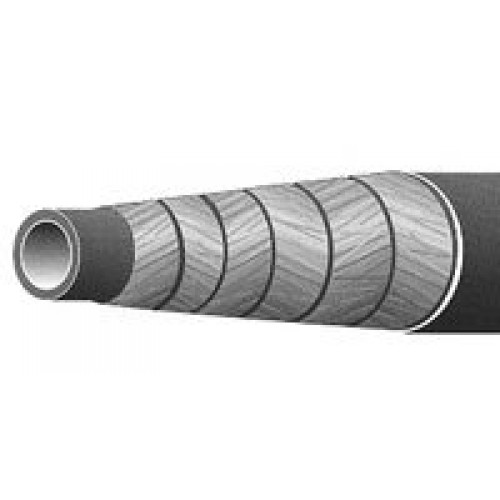

SAE 100R13 High Impulse
Recommended for: Extra high pressure hydraulic oil lines for heavy duty service applications with crude oils, fuel oils, lubricating oils and gasoline. Exceeds SAE 100R13.
Tube: Black, oil resistant, Neoprene (CR)
Reinforcement: Multiple plies of spirally-wrapped high tensile steel wire
Cover: A synthetic rubber which is weather and temperature resistant. MSHA accepted.
Temperature range: -40°F to +250°F
Jones "9-lives"—4 & 6 Spiral
| Part Number | Hose I.D (in) | Hose O.D. (in) | Hose O.D. (mm) | Rated W.P.(psi) |
Min. Burst (psi) |
Min.Bend Radius (in) | Wt. Per Ft. (lbs) | ||
| Min | Max | Min | Max | ||||||
| 1213-12 | 3/4 | 1.220 | 1.311 | 31.00 | 33.30 | 5,000 | 20,000 | 4.76 | 1.07 |
| 1213-16 | 1 | 1.480 | 1.567 | 37.60 | 39.80 | 5,000 | 20,000 | 6.02 | 1.48 |
| 1213-20 | 1-1/4 | 1.902 | 2.020 | 48.30 | 51.30 | 5,000 | 20,000 | 8.27 | 2.48 |
| 1213-24 | 1-1/2 | 2.197 | 2.315 | 55.80 | 58.80 | 5,000 | 20,000 | 9.99 | 3.22 |
| 1213-32 | 2 | 2.736 | 2.862 | 69.50 | 72.70 | 5,000 | 20,000 | 12.52 | 5.03 |
