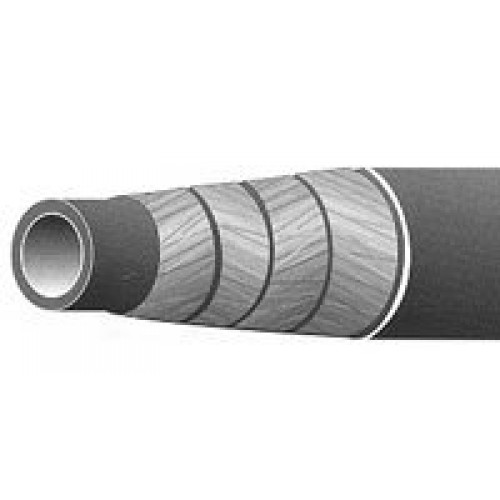

SAE 100R12 High Pressure
Recommended for: High pressure hydraulic oil lines for heavy duty service applications with crude oils, fuel oils, lubricating oils and gasoline. Meets or exceeds SAE 100R12.
Tube: Black, oil resistant, Neoprene (CR).
Reinforcement: Four piles of spirally-wrapped high tensile steel wire.
Cover: A synthetic rubber which is weather and temperature resistant. MSHA accepted
Temperature range: -40°F to +250°F.
Jones 4-Sprial
|
Part Number |
Hose I.D (in) | Hose O.D. (in) | Hose O.D. (mm) | Rated W.P.(psi) | Min. Burst (psi) | Min.Bend Radius (in) | Wt. Per Ft. (lbs) | ||
| Min | Max | Min | Max | ||||||
| 1312-06 | 3/8 | .768 | .827 | 19.50 | 21.00 | 4,000 | 16,000 | 5.0 | .44 |
| 1312-08 | 1/2 | .906 | .969 | 23.00 | 24.60 | 4,000 | 16,000 | 7.0 | .55 |
| 1312-10 | 5/8 | 1.047 | 1.110 | 26.60 | 28.20 | 4,000 | 16,000 | 8.0 | .77 |
| 1312-12 | 3/4 | 1.177 | 1.240 | 29.90 | 31.50 | 4,000 | 16,000 | 9.5 | .82 |
| 1312-16 | 1 | 1.449 | 1.543 | 36.80 | 39.20 | 4,000 | 16,000 | 12.0 | 1.28 |
| 1312-20 | 1-1/4 | 1.787 | 1.913 | 45.40 | 48.60 | 3,000 | 12,000 | 16.5 | 1.76 |
| 1312-24 | 1-1/2 | 2.043 | 2.165 | 51.90 | 55.00 | 2,500 | 10,000 | 20.0 | 2.18 |
| 1312-32 | 2 | 2.563 | 2.689 | 65.10 | 68.30 | 2,500 | 10,000 | 25.0 | 2.85 |
