SAE 100R12 High Impulse
Recommended for: High pressure hydraulic oil lines for heavy duty service applications with crude oils, fuel oils, lubricating oils, and gasoline. Exceeds SAE 100R12.
Tube: Black, oil resistant, Neoprene (CR).

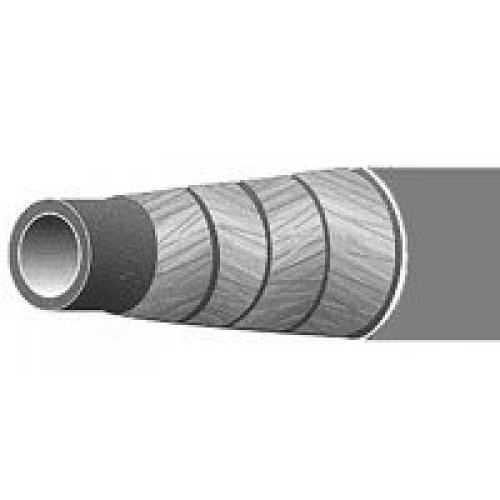

Reinforcement: Four plies of spirally-wrapped high tensile steel wire.
Cover: A synthetic rubber which is weather and temperature resistant. MSHA accepted.
Temperature range: -40°F to +250°F
Jones "9-lives"— 4-Sprial
| Part Number | Hose I.D (in) | Hose O.D. (in) | Hose O.D. (mm) | Rated W.P.(psi) | Min. Burst (psi) | Min.Bend Radius (in) | Wt. Per Ft. (lbs) | List Price | ||
| Min | Max | Min | Max | |||||||
| 1212-06 | 3/8 | .768 | .827 | 19.50 | 21.00 | 4,000 | 16,000 | 2.50 | .40 | 7.82 |
| 1212-08 | 1/2 | .906 | .969 | 23.00 | 24.60 | 4,000 | 16,000 | 3.50 | .54 | 8.75 |
| 1212-10 | 5/8 | 1.047 | 1.110 | 26.60 | 28.20 | 4,000 | 16,000 | 4.00 | .74 | 10.15 |
| 1212-12 | 3/4 | 1.177 | 1.240 | 29.90 | 31.50 | 4,000 | 16,000 | 4.75 | .94 | 11.40 |
| 1212-16 | 1 | 1.449 | 1.543 | 36.80 | 39.20 | 4,000 | 16,000 | 6.0 | 1.34 | 14.62 |
| 1212-20 | 1-1/4 | 1.787 | 1.913 | 45.40 | 48.60 | 3,000 | 12,000 | 8.25 | 1.74 | 25.75 |
| 1212-24 | 1-1/2 | 2.043 | 2.165 | 51.90 | 55.00 | 2,500 | 10,000 | 10.0 | 2.01 | 31.98 |
| 1212-32 | 2 | 2.563 | 2.689 | 65.10 | 68.30 | 2,500 | 10,000 | 12.50 | 2.75 | 46.22 |
