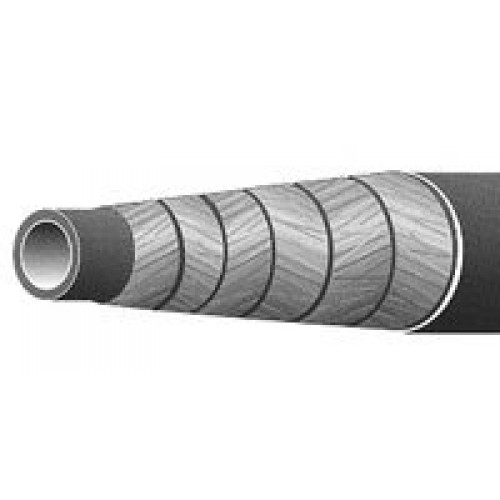

SAE 100R13 High Pressure
Recommended for: Extra high pressure hydraulic oil lines for heavy duty service applications with crude oils, fuel oils, lubricating oils and gasoline. Exceeds SAE 100R13.
Tube: Black, oil resistant, Neoprene (CR).
Reinforcement: Multiple plies of spirally-wrapped high tensile steel wire.
Cover :A synthetic rubber which is weather and temperture resistant. MSHA accepted.
Temperature range: -40°F to +250°F.
Jones 4 &6 Spiral
| Part Number | Hose I.D (in) | Hose O.D. (in) | Hose O.D. (mm) | Rated W.P.(psi) | Min. Burst (psi) | Min.Bend Radius (in) | Wt. Per Ft. (lbs) | ||
| Min | Max | Min | Max | ||||||
| 1313-12 | 3/4 | 1.220 | 1.311 | 31.00 | 33.30 | 5,000 | 20,000 | 9.5 | 1.13 |
| 1313-16 | 1 | 1.480 | 1.567 | 37.60 | 39.80 | 5,000 | 20,000 | 12.0 | 1.35 |
| 1313-20 | 1-1/4 | 1.902 | 2.020 | 48.30 | 51.30 | 5,000 | 20,000 | 16.5 | 2.41 |
| 1313-24 | 1-1/2 | 2.197 | 2.315 | 55.80 | 58.80 | 5,000 | 20,000 | 20.0 | 3.21 |
| 1313-32 | 2 | 2.736 | 2.862 | 69.50 | 72.70 | 5,000 | 20,000 | 25.0 | 4.44 |
