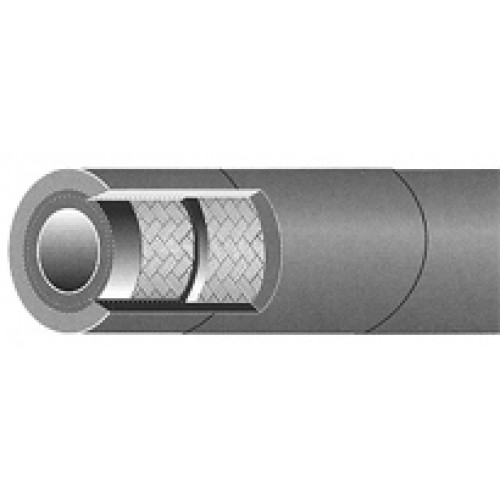

High Temp. II-Rubber Cover
Recommended for: High temperature medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water and air. Dimensions and working pressures the same as SAE 100R2AT.
Tube: Black, oil and heat resistant synthetic Nitrile (NBR).
Reinforcement: Two high tensile steel wire braids
Cover: Blue, oil and abrasion resistant Neoprene (CR).
Temperature range: -40°F to +300°F
| Part Number | Hose I.D (in) | Hose O.D. (in) | Rated W.P.(psi) | Min. Burst (psi) | Min.Bend Radius (in) | Wt. Per Ft. (lbs) |
| A807-04 | 1/4 | .53 | 5,000 | 20,000 | 4.00 | .25 |
| A807-06 | 3/8 | .75 | 4,000 | 16,000 | 5.00 | .32 |
| A807-08 | 1/2 | .86 | 3,500 | 14,000 | 7.00 | .40 |
| A807-12 | 3/4 | 1.16 | 2,250 | 9,000 | 9.50 | .57 |
| A807-16 | 1 | 1.49 | 2,000 | 8,000 | 12.00 | .90 |
| 1807-20 | 1-1/4 | 1.90 | 1,625 | 6,500 | 16.50 | 1.47 |
| 1807-24 | 1-1/2 | 2.15 | 1,250 | 5,000 | 25.00 | 1.70 |
| 1807-32 | 2 | 2.66 | 1,125 | 4,500 | 25.00 | 2.34 |
