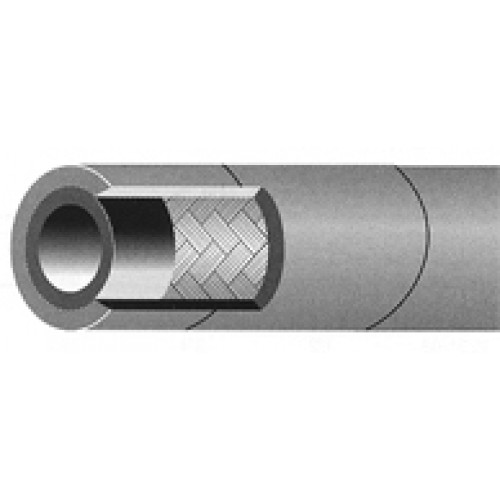

All Temp. I-Cotton Cover
Recommended for: High temperature medium pressure hydraulic applications using petroleum base hydraulic fluids. Also for gasoline, diesel fuel, oil, water, and air. Meets SAE 100R5 and SAE J1402 type AII for hydraulic service in all sizes. Meets the requirements of DOT FMVSS 106 type AII for truck air brake applications in sizes 3/16" thru 5/8". Also is approved by AAMVA for air brake service.
Tube: Black, oil resistant all temperature Nitrile (NBR).
Reinforcement: One high tensile steel wire braid over one polyester braid. Friction layers under and over wire braid improve tube and cover adhesion.
Cover: Blue, oil resistant polyester braid impregnated with Neoprene (CR).
Temperature range: -65°F to +300°F
| Part Number | Hose I.D (in) | Hose O.D. (in) | Rated W.P.(psi) | Min. Burst (psi) | Min.Bend Radius (in) | Wt. Per Ft. (lbs) |
| A803-04 | 3/16 | .52 | 3,000 | 12,000 | 3.00 | .16 |
| A803-05 | 1/4 | .58 | 3,000 | 12,000 | 3.38 | .18 |
| A803-06 | 5/16 | .67 | 2,250 | 9,000 | 4.00 | .23 |
| A803-08 | 13/32 | .77 | 2,000 | 8,000 | 4.62 | .27 |
| A803-10 | 1/2 | .92 | 1,750 | 7,000 | 5.50 | .36 |
| A803-12 | 5/8 | 1.08 | 1,500 | 6,000 | 6.50 | .44 |
| A803-16 | 7/8 | 1.23 | 800 | 3,200 | 7.38 | .45 |
| 1803-20 | 1-1/8 | 1.50 | 625 | 2,500 | 9.00 | .56 |
| 1803-24 | 1-3/8 | 1.75 | 500 | 2,000 | 10.50 | .64 |
| 1803-32 | 1-13/16 | 2.22 | 350 | 1,400 | 13.25 | .90 |
| 1803-40 | 2-3/8 | 2.87 | 350 | 1,400 | 24.00 | 1.36 |
