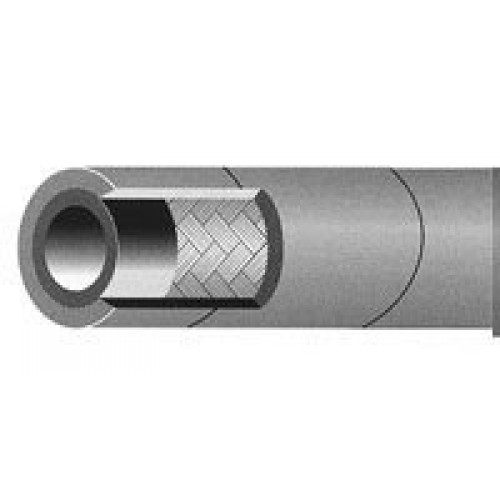

SAE 100R17 WearGuard Plus
Recommended for: Medium pressure hydraulic applications. Meets or exceeds SAE 100R17 performance specifications.
Tube: Black, oil resistant, Nitrile (NBR).
Reinforcement: One wire high tensile steel braid in sizes 1/4 thru 1/2 and two wire high tensile steel braid in sizes 5/8 thru 1.
Cover: Black, oil and abrasion resistant Neoprene (CR). MSHA approved
Temperature range: -40°F to 250°F.
NRP 1-Wire Braid Non-Skive
| Part Number | Hose I.D (in) | Hose O.D. (in) | Rated W.P.(psi) | Min. Burst (psi) | Min.Bend Radius (in) | Wt. Per Ft. (lbs) |
| A251-04 | 1/4 | .53 | 3,000 | 12,000 | 2.0 | .16 |
| A251-06 | 3/8 | .68 | 3,000 | 12,000 | 2.5 | .23 |
| A251-08 | 1/2 | .80 | 3,000 | 12,000 | 3.5 | .28 |
| A251-10 | 5/8 | 1.00 | 3,000 | 12,000 | 4.0 | .49 |
| A251-12 | 3/4 | 1.16 | 3,000 | 12,000 | 4.75 | .57 |
| A251-16 | 1 | 1.49 | 3,000 | 12,000 | 6.0 | .90 |
| A251-04UP | 1/4 | .53 | 3,000 | 12,000 | 2.0 | .16 |
| A251-06UP | 3/8 | .68 | 3,000 | 12,000 | 2.5 | .23 |
| A251-08UP | 1/2 | .80 | 3,000 | 12,000 | 3.5 | .28 |
